Servomotor type: MH-108A．MH-109A．MH-110A
- ◆Detachable force follow-up mechanism.
Optimum force follow-up mechanism can be attached depends on an application.
- ◆Custom-made.
Force follow-up mechanism has a variety of electrode holders. Diameter of electrodes and set direction of electrodes; straight or eccentric, can be selected for a wide range of applications.
- ◆Easy programming.
It needs only turning and pressing a dial of attached controller.
- ◆Equal weld quality can be obtained even by beginners.
Servo motor driven type does not need any special skill to get great weld quality.
- ◆Stable force can be applied.
Spring pressurization and servo motor ensure weld repeatability. Applied force is kept stable regardless of electrode's length.
- ◆"Soft-touch" part clamping.
It minimizes impact force and allows verification of part alignment prior to welding.
- ◆Easy installation.
Due to a motor driven, no piping is necessary.
- ◆Overforce protection.
It ensures concise, repeatable force, less weld splash, reduced part deformation.
| Model | MH-108A | MH-109A | MH-110A |
|---|---|---|---|
| Head type | For direct welding | For direct welding / series welding | For direct welding / series welding |
| Drive method | Servomotor | ||
| Corresponding force follow-up mechanism | VPW-S | VPW-S/ VBW-S/ VTW-S | VPW-S/ VBW-S/ VTW-S/ VPW-M/ VTW-M |
| Maximum weld force | VPW: 7kgf (70N) | VPW: 7kgf (70N) VBW,VTW: 3.5kgf (35N) each | VPW: 50kgf (500N) VBW,VTW: 25kgf (250N) each |
| Top electrode holder | Water-cooling pre-set | Pararell moving | Eccentric |
| Bottom electrode holder | Model dedicated to MH-108A | XY-30 (Φ3, 5, 8) | XY-30 (Φ3, 5, 8) |
| Diameter of electrode | Φ3 | Φ3 | Φ5 |
| Stroke | 50mm (Minimum solution: 0.1mm) | ||
| Number of schedule | 31 (Switchable from external device) | ||
| Datacom | RS-232C/RS-485, 9600bps | ||
| Power requirements | 100 to 240VAC +/-10%, 50/60Hz | ||

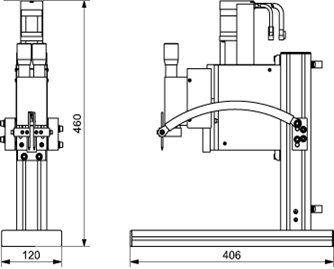

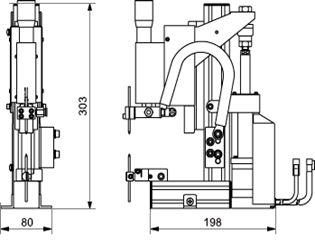

- ◆MH-108A
